OUR TOP QUALITY FISHING ARCH, DESIGNED FOR EASY INSTALLATION USING COMMON HOUSEHOLD TOOLS, FOLDS DOWN IN MINUTES. ANODIZED FOR PROTECTION FROM SALT WATER. ALL PARTS ARE MACHINED AND WELDED BY ROBOTS FOR THE BEST QUALITY

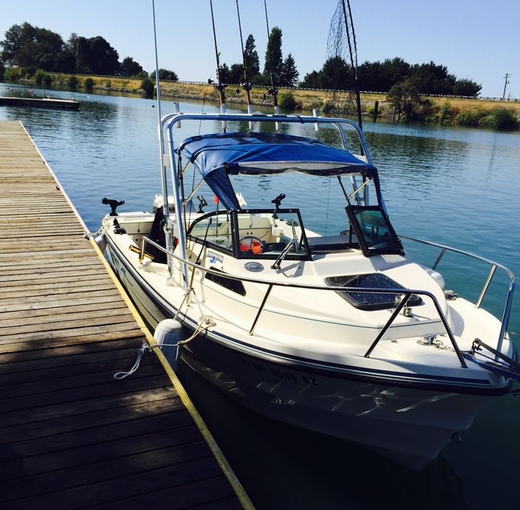

Fits Most Boats. Adjust from 36" up to 136" Wide. Up to 59? Tall (mounting location to the underside of the arch)
Same great Uni Arch with all the bells and whistles. One great price. All polished anodized arch and components. Captains Package Hollow tube all the way through to run and hide wires. You will need to drill an access hole near the bottom of one of the legs above the mounts approximate 1" above the top of the mounts when the mounts are fully seated in the tube and an exit hole near where you will be mounting your lights on the top cross tube. Insert a wire during assembly to serve as a cord for pulling the wires through the tube when the assembly is complete. We recommend using a good quality automotive anti-seize compound on all threads. While not mandatory this additional step will save you work later should you decide to move or disassemble rod holders etc. Two different style mounts "side and deck". Mounting holes are .278 diameter and are sized for 1/4 20 screws. Stainless steel screws are recommended. Also backing plates are recommended. You may need to cut small amounts of flotation foam under the gunnels on some boats. Assembly required. Bolts,nuts and lock washers for holding the bases to the deck or cabin side are not included due to the wide variety of hull and or cabin thicknesses. Purchase the stainless steel bolts, nuts, fender washers and lock washers locally. CAPTAINS PACKAGE You can swap some items, however not all items have the same swap value. The rod holders, net holder, radar pad and light bracket set are even swaps. There is a $15.00 up charge to swap one of the items included for a the swivel mount rod holder. Uni-Arch with the Captain’s Package includes: (4) backing plates (4) mounting shims (4 sets) break away mounting hardware (8) bolt-on adjustable rod holders (1) Light Bracket Set (Lights Sold Separately) (2) Quick Swivel Rod Holders (1) Net Holder That equals $600.00 in upgrades for a value of $479.00
Same great Uni Arch with all the bells and whistles. One great price.
All polished anodized arch and components.
Hollow tube all the way through to run and hide wires. You will need to drill an access hole near the bottom of one of the legs above the mounts approximate 1" above the top of the mounts when the mounts are fully seated in the tube and an exit hole near where you will be mounting your lights on the top cross tube.
Insert a wire during assembly to serve as a cord for pulling the wires through the tube when the assembly is complete.
We recommend using a good quality automotive anti-seize compound on all threads. While not mandatory this additional step will save you work later should you decide to move or disassemble rod holders etc.
Two different style mounts "side and deck". Mounting holes are .278 diameter and are sized for 1/4 20 screws. Stainless steel screws are recommended. Also backing plates are recommended. You may need to cut small amounts of flotation foam under the gunnels on some boats.
