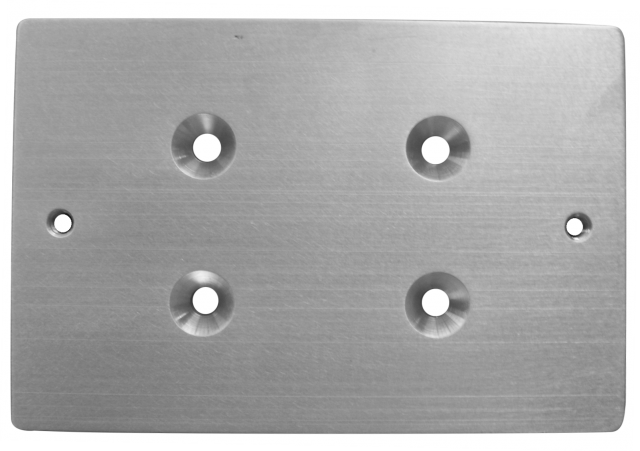

Cannon Downrigger Adapter Plate - Cisco 1/24
Cisco
Part Number: XPCAN - Choose plate adapter from options in drop down menu.
This mounting plate will serve as an adapter for any Cannon downrigger equipped with a stationary or swivel base. The adapter plate is capable of mounting to any of our Mounts for Multi Units, however, this plate is most popular being mounted either our Lund Mounts or our Tracker VersaTrack Mount.
*If you intend on mounting this to our 42° Sport Trac Lund Mount please select this option below. All other mounts will work with our Standard Cannon Adapter Plate.
|
Click for larger image
|
|
Cisco - 4 ft Planer Mast. Cisco 2/24
Cisco
4 ft - Planer Mast with Pulley
4' Planer Mast with Pulley(s)
Part Number: PMSRT
This mast unit is perfect for individuals who would like to rig their boat in their own unique setup. The mast is solid aluminum and is compact enough for you to place in various locations on your boat. We have designed our planer masts to be the most durable product available on the market.
Every piece of aluminum is machined and crafted from solid aluminum and anodized to military specs. Unlike other brands, which use hollow aluminum tubing for the upright mast, we construct ours using a solid 1½” pole to ensure that even in the toughest conditions our mast will neither bend nor break.
The unit comes with mounting plate, backing plate, solid collar and swivel pulleys and is capable for use with our manual/electric reel(s).
Pulley Specs
Cisco pulley’s are constructed with solid aluminum side plates, hard anodized aluminum sheave, stainless steel ball bearings, and bolted together with stainless steel hardware. We manufacture quality products built for a lifetime of use!
The sheave is recessed to prevent the line from being captured between the side plate and sheave. The 12/0 swivel is rated by the manufacturer at 1500 lbs (this swivel is constructed in the USA).
Unlike our competitors you will not find a single piece of plastic on our pulleys! This is also why our pulleys do not make any squealing sounds when in use. The stainless steel bearings provide a smooth and silent operation like no other pulley available!
Manual/Electric Reel Specs (Upgrade)
12 Volt Motor Specs: Our solid aluminum 6” reel is powered by motors which are engineered and manufactured in the USA; these motors have 2½ times more torque than our competitors making it possible to retrieve any size planer board at any trolling speed.
Attached to the shaft is a heavy duty stainless steel collar which is built for precision adjustments of the clutch (other manufacturers use a thin snap ring which when too much pressure is applied breaks the ring causing the clutch components to rub against the motor housing, thus destroying the unit).
Additionally, we seal our motors through an extensive weatherproofing process to ensure a long lasting life of the motor.
Specs for Reel and Clutch Components: The 6” reel comes with a stainless steel bore to fit the driveshaft. Attached to the shaft is a heavy duty stainless steel collar which is built for precision adjustments of the clutch (other manufacturers use a thin snap ring which when too much pressure is applied breaks the ring causing the clutch components to rub against the motor housing, thus destroying the unit). Our clutch components use a hard anodize pressure plate and 660 bronze machined clutch pads for virtually no wear on the unit even after years of constant use. The clutch knob is also solid aluminum and unlike plastic knobs, will neither break nor need replaced each season.
ELECTRIC CONTROLS FOR MOTORS
The electric control box is constructed of polycarbonate material and has a waterproof enclosure with stainless steel screws. The wire fittings have rubber inserts to grip and seal the wire as it enters the control box to ensure a watertight seal. Dimensions are approximately 3” x 3” x 2”.
Included in the control is a resettable push button 15 amp breaker with a waterproof boot. There is a 3-way switch (on-off-on) which controls the spooling rotation of the reel and also includes a switch guard and a waterproof boot.
The wire is 14 Gauge Fine Stranded low voltage copper wire. The jacket of the wire is UV/water/oil resistant. We provide 11 feet of wire from the boat power supply to the control box and 22 feet of wire from the control box to the electric drive reel. Extra lengths are available at customer request (additional charges may apply).
Note: Only one electric control can be used with each electric motor.
|
Click for larger image
|
|
Cisco - Dual Reel Mast CHOOSE Manual or Electric Drive w/pulleys 1/24
Cisco
6' Dual Electric Planer Mast with Pulleys
Home > Shop > Planer Systems > Planer Masts > 6' Dual Electric Planer Mast
Part Number: PMDBE
The planer mast includes 6” solid aluminum reels, line guides, variable clutches, aluminum clutch knobs, high torque electric motors with modified output shafts, aluminum cased pulleys, removable base, mounting and backing plate. Further details listed below:
Click on images to enlarge
12 Volt Motor Specs: Our solid aluminum 6” reels are powered by motors which are engineered and manufactured in the USA; these motors have 2½ times more torque than our competitors making it possible to retrieve any size planer board at any trolling speed.
Attached to the shaft is a heavy duty stainless steel collar which is built for precision adjustments of the clutch (other manufacturers use a thin snap ring which when too much pressure is applied breaks the ring causing the clutch components to rub against the motor housing, thus destroying the unit).
Additionally, we seal our motors through an extensive weatherproofing process to ensure a long lasting life of the motor.
Specs for Reel and Clutch Components: The 6” reel comes with a 7/16” stainless steel bore to fit the driveshaft. Attached to the shaft is also a heavy duty stainless steel collar which is built for precision adjustments of the clutch (other manufacturers use a thin snap ring which when too much pressure is applied breaks the ring causing the clutch components to rub against the motor housing, thus destroying the unit). Our clutch components use a hard anodize pressure plate and 660 bronze machined clutch pads for virtually no wear on the unit even after years of constant abuse. The clutch knob is also solid aluminum and unlike plastic knobs will neither break nor need replaced each season.
Aluminum Cased Pulley Specs:
Cisco pulley’s are constructed with solid aluminum side plates, hard anodized aluminum sheave, stainless steel ball bearings, and bolted together with stainless steel hardware. We manufacture quality products built for a lifetime of use! The sheave is recessed to prevent the line from being captured between the side plate and sheave. The 12/0 swivel is rated by the manufacturer at 1500 lbs (this swivel is constructed in the USA).
Unlike our competitors you will not find a single piece of plastic on our pulleys. This is also why our pulleys do not make any squealing sounds when in use. The stainless steel bearings provide a smooth and silent operation like no other pulley available!
Price: $658.00 - $1,260.93
|
Click for larger image
|
|
Cisco - Single Planer Board Electric Drive Reel for Custom Applications 1/24
Cisco
Part Number: PMELR - CHOOSE APPLICATION
This electric planer board reel is is built from the precision CNC machining from billet aluminum using solid stainless steel, aluminum and bronze clutch components for a LIFETIME of use. The electric motor is the strongest available on the market making the retrieval of your planer boards occur in a smooth consistent manner. Our mounting plate is extremely user versatile making it fit onto virtually any surface.
______________________
The mounting plate comes with 14 tapped hole locations for the universal mounting clamps to secure to and can be mounted to both the front and the back of the plate. The line guide can also be adjusted to a wide variety of angles to suit individual needs.
Our electric planer drive reels are centered around a 7/16” stainless steel driveshaft and include a 6” solid aluminum reel, variable clutch, aluminum clutch knob, high torque electric motor (modified output shaft), universal mounting bracket and line guide (both easily adjustable in 12 different positions for ultimate versatility), and vee clamps capable of mounting from 7/8” to 1½” diameter rail (larger clamps are also available upon request). For customers looking to mount this equipment to larger diameter rails we have larger vee clamps available upon request.
Further details about some of these components are listed below:
12 Volt Motor Specs: Our solid aluminum 6” reels are powered by motors which are engineered and manufactured in the USA; these motors have 4 times more torque than our competitors making it possible to retrieve any size planer board at any trolling speed. Additionally, we seal our motors through an extensive weatherproofing process to ensure a long lasting life of the motor.
NEW ! Motors will have two times more torque than our previous motor for a grand total of 50lbs/in. per revolution!
Specs for Reel and Clutch Components: The 6” reels come with a 7/16” stainless steel bore to fit the driveshaft. Attached to the shaft is also a heavy duty stainless steel collar which is built for precision adjustments of the clutch (other manufacturers use a thin snap ring which when too much pressure is applied breaks the ring causing the clutch components to rub against the motor housing, thus destroying the unit).
Our clutch components use a hard anodize pressure plate and 660 bronze machined clutch pads for virtually no wear on the unit even after years of constant abuse. The clutch knob is also solid aluminum, and unlike plastic knobs, will neither break nor need replaced each season.
Hardtop or Surface Mounting Options Available Upon Request
We do have the ability to mount the planer board reels to hardtops or flat surfaces. If your rigging designs requires this service please Contact Us and we will be happy to discuss the best option for you. The last two photos shown above illustrates our most popular surface mounting option; Cisco Planer Board Reel secured to our Quick Release Mount for easy removal!
**Revolving Handle Only Included With Manual Planer Board Reel. Electric Controls sold separately.
Line Capacity is 300 ft of 500lb line and 225 ft of 800lb line
|
Click for larger image
|
|
Single Pulley with Rail/Tube Clamp 1/24
Cisco
Single Planer Pulley with Clamps
Home > Shop > Planer Systems > Single Planer Pulley with Clamps
Part Number: PMSPC
If you are looking to set up your boat in a way slightly different than traditional rigging than this unit may be exactly what you have been seeking!
Our standard rail clamps can fit any rail from 7/8” to 1½” in diameter and our large rail clamps fit any rail from 1½" to 2¾”. These rail clamps are are machined from solid aluminum.
Our pulley’s are constructed with solid aluminum side plates, stainless steel sealed ball bearings, and are assembled together with stainless steel hardware. The sheave is recessed to prevent the line from being captured between the side plate and sheave. The 12/0 swivel is rated by the manufacturer at 1500 lbs (this swivel is constructed in the USA).
Tired of Replacing Your Noisy Plastic Pulley's at the End of Each Season?
Unlike our competitors who are built entirely from die injected plastics, you will not find a single piece of plastic on our pulleys. We manufacture virtually all components of the pulley at our manufacturing facility in Cleveland, Ohio.
Our pulley's are Big Jon compatible and can easily replace your existing worn out units. We designed our pulleys to make sure that there is no harsh squealing, that results from other manufacturer's sheaves plastic components rubbing against each other.
Make sure the next time you purchase a pulley is the last time you purchase a pulley with our Cisco quality products.
Position this unit in a place where your lines will stay farthest from your boat to help you catch some of the more timid fish which steer clear from your boats wake!
|
Image Not Available
|
|
Big Jon Holder/Downrigger Adapter Plate - Cisco 1/24
Cisco
Big Jon Downrigger Plate 4"x4" with tapped holes. Mount to Gunnel
|
Click for larger image
|
|
Cisco - Clutch Knob 1/24
Cisco
Clutch Knob
Four spoke, 2-1/2" Diameter, solid aluminum construction with a 7/16-14 thread tapped thru. (compatible with most Big Jon electric drives)
|
Click for larger image
|
|
Cisco - Revolving Handle for Reel 1/24
Cisco
Revolving Handle - Looking for a plastic handle? you won't find it here. We machine our handles from a solid round of aluminum to ensure a lifetime of use. All inner working components are machined from aluminum and stainless steel for a smooth and fluent revolution every time. We recommend that every person who owns an electric reel should have a handle in case of electrical failure or wiring malfunction on the boat.
|
Click for larger image
|
|
Scotty Downrigger Adapter Plate - Cisco 1/24
Cisco
|
Click for larger image
|
|
Walker Downrigger Adapter Plate - Cisco 1/24
Cisco
|
Click for larger image
|
|
Cisco - Pulley with Swivel 1/24
Cisco
Pulley with swivel Constructed with aluminum side plates and spacers then bolted together with stainless steel hardware. The sheave has a stationary bearing race with delrin ball bearings for a smooth operation. The sheave is recessed to prevent the line from being captured between the side plate and sheave. The 12/0 swivel is rated by the manufacturer at 1500 lbs. (this swivel is constructed in the USA)
|
Click for larger image
|
|

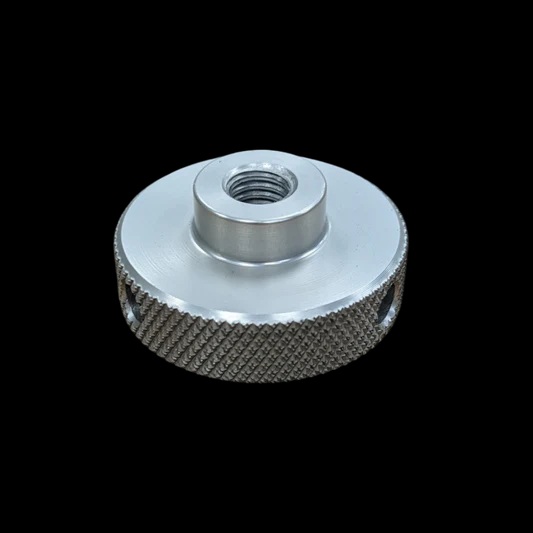

CISCO PLANER MAST TIE DOWN COLLAR 4/22
Cisco
CISCO PLANER MAST TIE DOWN COLLAR
Part Number: XPPLC
This support collar is designed to help stabilize your planer mast to more evenly help disperse pressure at the mounting base. The collar can slide over any 1-1/2" diameter pole and be locked in position by tightening the four set screws into place. By using the thru hole in the wing of the collar you can use a variety of different methods to attach support lines to the rails on your boat. We recommend positioning this collar towards the mid to upper location on the mast to help stabilize any excess torque when running your boards.
*Support Wire/Cable/Line is Not Included
|
Click for larger image
|
|
Adjustable Hand Line Reel Mount -Cisco (track not included) 1/24
Cisco
Part Number: XPHLM -
You may also select the optional Track mount
Cisco handline reels mounts are the most versatile and user friendly mounts available. The length of the mounting plate is 15" long and has the ability to mount any A & S or Riveria hand line reel to it using any of the pre-drilled holes between 12.5" to 14.75" on the plate. The unit can also easily pick up and rotate to any 360° location to help get the reel closer or further from the boats gunnel depending on the current. This feature also makes it very convenient when docking the boat because you can align your reel parallel with your boats gunnel.
The handline mount can secure to any of our Mounts for Single Rod Holders as well as our various, Lund mounts, Tracker mounts. Rail mounts, etc (purchased separately). If you need any assistance figuring out the best way to rig your boat please contact us and we will gladly assist you!
|
Click for larger image
|
|
Cisco - Single Planer Pulley with Clamps 12/20
Cisco
Single Planer Pulley with Clamps
Part Number: PMSPC
If you are looking to set up your boat in a way slightly different than traditional rigging than this unit may be exactly what you have been seeking!
Our rail clamps can fit any rail from 7/8” to 1½” in diameter (larger clamps are also available upon request) and the entire mounting system is machined from solid aluminum.
Our pulley’s are constructed with solid aluminum side plates, hard anodized aluminum sheave, stainless steel ball bearings, and bolted together with stainless steel hardware. The sheave is recessed to prevent the line from being captured between the side plate and sheave. The 12/0 swivel is rated by the manufacturer at 1500 lbs (this swivel is constructed in the USA).
Tired of Replacing Your Noisy Plastic Pulley's at the End of Each Season?
Unlike our competitors who are built entirely from die injected plastics you will not find a single piece of plastic on our pulleys. We manufacture EVERY component of the pulley at our manufacturing facility in Cleveland, Ohio using aircraft grade aluminum, industrial grade stainless steel ball bearings and hard anodized sheaves which fit tightly into the recessed pulley plates.
Our pulley's are Big Jon compatible and can easily replace your existing worn out units. Also, we designed our pulleys to make sure that there is no harsh sqeaking sounds which comes from other manufactures sheaves plastic components rubbing against each other.
Make sure the next time you purchase a pulley the last time you purchase a pulley with our Cisco quality products.
|
Click for larger image
|
|
Adjustable Handline Reel Mount on Track Mount - Cisco 2/24
Cisco
Part Number: XPHLM
Cisco handline reels mounts are the most versatile and user friendly mounts available. The length of the mounting plate is 15" long and has the ability to mount any A & S or Riveria handline reel to it using any of the pre drilled holes between 12.5" to 14.75" on the plate. The unit can also easily pick up and rotate to any 360° location to help get the reel closer or further from the boats gunnel depending on the current. This feature also makes it very convenient when docking the boat because you can align your reel parallel with your boats gunnel.
The handline mount can secure to any of our Mounts for Single Rod Holders as well as our various, Lund mounts, Tracker mounts. Rail mounts, etc (purchased separately). If you need any assistance figuring out the best way to rig your boat please contact us and we will gladly assist you!
|
no picture
|
|
Cisco - Tree Mast - Thumbscrew Mount 8/22
Cisco
Cisco - Tree Mast Thumbscrew Mount
|
Click for larger image
|
|
Cisco -Tree Mast with Thumbscrew/Track Mount (mast Only) 1/24
Cisco
Cisco - Tree Mast with Thumbscrew/Track Mount
Part Number: TRMST
The tree mast stands 32” high and is capable of mounting four rod holders along it. It is a solid 7/8” mast and is available in thumbscrew and 3” track (Cisco, Bert's, Traxstech) mounting options.
By mounting our tree masts to a thumbscrew or track base you have the option of simply turning the unit 180° when you are done fishing. We make it easy to do this so that the rod holder tubes can safely stay inside the dimensions of the boat to ensure that nothing can snag them when docking the boat. You can find our safe and secure Sure-Stop Track in our online shop!
Click on image to enlarge
|
Click for larger image
|
|
Pro Trac Downrigger Lund Mount 1/23
Cisco
Pro Trac Downrigger Lund Mount
Part Number: MTU90-DR
The 90° Heavy Duty Lund mount is machined from a solid piece of aluminum extrusion. The custom slotted bolts are made from stainless steel and are attached to all solid aluminum components which complete the round knobs. You will know when your unit is locked into place when the red line gauge is in the vertical position. Also, provided with this unit are synthetic levelers at the end of the unit to give the mount added support and to protect the gunnel from unnecessary scratches. This mount can be easily attached or removed from the Pro Trac gunnel with no tools necessary.
This bracket is designed to help disperse the torque more evenly across the surface of the gunnel. By having the mount elongated to cover a larger footprint across the gunnel it creates a much more rigid surface for mounting your downriggers and elimates the possibility of flexing on the Pro Trac.
Cannon, Big Jon and Walker, Scotty and Cisco downrigger adpater plates are also available (as shown in the photo but sold separately).
The dimensions of the top mounting surface of this bracket are 9" x 3".
Click on image to enlarge
|
Click for larger image
|
|
Cisco - Downrigger Motor 2/24
Cisco
NOTE: When ordering 2 motors shipping to Canada only add the shipping option to 1 motor
The down riggers uses a powerful 12 volt motor with a 7/16" inch stainless steel output shaft which rotates at 110-115 rpm. The three mounting lugs are in a 1-7/8" inch bolt circle and are 1/4" inch. fine threaded holes. We recommend using our electric controls with an 8 amp re-settable breaker included.
For added protection, our motors include a weatherproof heat shrunk boot around the exterior of the motor/power leads and are protected with a GE silicone sealant to provide long term sustainability.
This motor is Big Jon Compatible.
|
Click for larger image
|
|
Cisco - Planer Motor 1/24
Cisco
Planer Motor
NOTE: When ordering 2 motors shipping to Canada only add the shipping option to 1 motor
Part Number: PMMOT
Our planer motors are a powerful 12 volt motor with a 7/16” stainless steel output shaft which rotates at 55-60 rpm. Attached to the shaft is a heavy duty stainless steel collar which is built for precision adjustments of the clutch (other manufacturers use a thin snap ring which when too much pressure is applied breaks the ring causing the clutch components to rub against the motor housing, thus destroying the unit).
The three mounting lugs are in a 1-7/8” bolt circle and are ¼-28 fine threaded holes. We recommend using our electric controls with a 15 amp resettable breaker. For added protection, our motors include a weatherproof heat shrunk boot around the exterior of the motor/power leads and are protected with a GE silicone sealant to provide long term sustainability.
The blue male quick disconnects attached to the wire ends are compatible with the female ends on our electrical controls. If you plan on using our motor with a pre-existing application please select the option below indicating you would like no wire ends on your motor.
This motor is Big Jon compatible!
Planer Motor Options
|
Click for larger image
|
|
SPECIAL ORDER FOR G STROM
CISCO
SPECIAL CHARGE FOR G. STROM CANNON LOW PROFILE BASES 6 EACH = TOTAL 29.1LBS
INTERNATIONAL SHIPPING VIA FED EX $156.30
LOCAL SHIPPING VISA FED EX 9.95
TOTAL SHIPPING TO KARLSKOGA SWEDEN $166.25
GORAN STROM
KARLSKOGA SWEDEN 69194
|
Click for larger image
|
|
Cisco - Swivel Base 1/24
Cisco
Cisco - Swivel Base - The swivel base is composed from a solid aluminum and stainless steel construction. The inner workings of this unit are operated by thrust bearings and ball bearings for a consistent and smooth rotation. The base indexes every 22.5 degrees for 16 different positions available for use. To ensure years of dependable use the unit is secured in position by a stainless steel pin by mating with tapered holes in the hard anodized indexing wheel. Unlike other swivel bases, this unit is designed so that the more the unit is used the better it locates as it wears into the tapered holes to ensure that no "slop" ever occurs.
|
Click for larger image
|
|
Cisco - 8" Inch High Capacity Reel 2/24
Cisco
High Capacity 8" Aluminum Reel - This over sized reel is similar to our 6" reel. Its frame is machined from a solid piece of aircraft grade aluminum and comes with four clutch pads made from 660 bronze. The inner hub measures 3½" in diameter and it uses a 7/16" diameter bore. Revolving handle may also be attached to this unit.
|
Click for larger image
|
|
Mounting System for Planer Motor
Cisco
Mounting system for Planer Motor includes all parts needed to attach motor and mount to Mast.
Motor is not included.
|
Image Not Available
|
|
Cisco - Electric Control for Planer Board Applications W/Remote 1/24
Cisco
Part Number: PMECT
he electric control box is constructed of poly-carbonate material and
has a waterproof enclosure with stainless steel screws. The wire
fittings have rubber inserts to grip and seal the wire as it enters the
control box to ensure a watertight seal.
Included in the control is a 30 Amp fuse. This unit will control up
to two motors using a single remote control. Multiple remotes can be
programmed to the same transmitter to keep spares on your vessel. Each
remote comes included with a floating key-chain attached. In the event
of a remote loss, each motor can be controlled by the momentary switches
installed on the transmitter box. Both the remote and the transmitter
box will allow for in/out rotation of each planer motor independently.
The wire is 14 Gauge Fine Stranded low voltage copper wire. The jacket of the wire is UV/water/oil resistant. We
provide 11 feet of wire from the boat power supply to the control box
and 22 feet of wire from the control box to the electric drive reel. Extra lengths are available at customer request (additional charges may apply).
|
Click for larger image
|
|
Cisco - Planer Board Manual Drive Reel for Custom Applications 1/24
Cisco
Planer Board Manual Drive Reel for Custom Applications
Includes: 6 in. solid aluminum reel, line guide, variable brake, aluminum hand crank and brake knob, universal mounting bracket, vee clamp (capable of clamping 7/8 in. thru 1-1/2 in.diameter); larger vee clamps and selective radius clamps are also available at an additional cost.
FEATURES: line guide and vee clamp may be rotated to other positions to accommodate your mounting requirements. The vee clamp can be located on either side of the mounting plate.
|
Click for larger image
|
|
SPECIAL ORDER FOR MARTIN INGERMARSSON - SWEDEN
CISCO
SPECIAL ORDER FOR MARTING INGERMARSSON -
Kallands-asaka Lillgarden
53196 Lidkoping, Sweden
XPREV CISCO REVOLVING HANDLE 2 EACH AT 24.99 = 49.98
PMMOT PLANER MOTOR 2 EACH AT 144.99 = 289.98
TOTAL $339.96
SHIPPING TO BE PAID SEPARATELY - ACTUAL COST AT TIME OF SHIPMENT
|
Click for larger image
|
|
Cisco - Planer Reel Conversion Kit 1/24
CISCO
Part Number: BJCVN
For anglers that have an existing planer
board mast on their boat (manual or electric) but want to upgrade their
retrieval system this unit is perfect for you. Our dual electric
conversion kit will allow you to remove your existing retrieval setup
and replace it with a powerful Cisco kit. This unit comes standard with
rail clamps that will fit on any planer board mast that is 7/8" to
1-1/2" diameter (larger clamps are available upon request). This kit
works great to upgrade reels on your Big Jon, Bert's, Traxstech and
other popular mast systems.
The electric planer board reels are manufactured using
precision CNC equipment from billet aluminum, stainless steel and bronze
clutch components for a LIFETIME of use. The electric motor is the
strongest available on the market making the retreival of your planer
boards occur in a smooth consistent manner. Our mounting plate is
extremely user versatile making it fit onto virtually any surface.
______________________
The mounting plate comes with 14 tapped hole locations for the
universal mounting clamps to secure to and can be mounted to both the
front and the back of the plate. The line guide can also be adjusted to
a wide variety of angles to suit individual needs.
Our electric planer drive reels are centered around a 7/16” stainless
steel driveshaft and include a 6” solid aluminum reel, variable clutch,
aluminum clutch knob, high torque electric motor (modified output
shaft), universal mounting bracket and line guide (both easily
adjustable in 12 different positions for ultimate versatility), and vee
clamps capable of mounting from 7/8” to 1½” diameter rail (larger clamps
are also available upon request). For customers looking to mount this
equipment to larger diamater rails we have larger vee clamps available
upon request.
Further details about some of these components are listed below:
12 Volt Motor Specs: Our solid
aluminum 6” reels are powered by motors which are engineered and
manufactured in the USA; these motors have 4 times more torque than our
competitors making it possible to retrieve any size planer board at any
trolling speed. Additionally, we seal our motors through an extensive
weatherproofing process to ensure a long lasting life of the motor.
Our
new motors have two times more torque than our previous motor for a
grand total of 90 lbs/in. per revolution! We dare you to compare us to
other manufacturers specs!
Specs for Reel and Clutch Components: The
6” reels come with a 7/16” stainless steel bore to fit the driveshaft.
Attached to the shaft is also a heavy duty stainless steel collar which
is built for precision adjustments of the clutch (other manufacturers
use a thin snap ring which when too much pressure is applied breaks the
ring causing the clutch components to rub against the motor housing,
thus destroying the unit).
Our clutch components use a hard anodize pressure plate and 660
bronze machined clutch pads for virtually no wear on the unit even after
years of constant abuse. The clutch knob is also solid aluminum, and
unlike plastic knobs, will neither break nor need replaced each season.
**Revolving Handle Only Included With Manual Planer Board Reel
|
Click for larger image
|
|
Cisco -Single Reel Mast with Electric Drive (dual unit shown in photo) 1/24
Cisco
Cisco - Single Reel Mast with Electric Drive PMSGE
The planer mast includes a 6” solid aluminum reel, line guide, variable clutch, aluminum clutch knob, high torque electric motor with modified output shaft, aluminum cased pulley, removable base, mounting and backing plate. Further details are listed below:
12 Volt Motor Specs: Our solid aluminum 6” reel is powered by motors which are engineered and manufactured in the USA; these motors have 2½ times more torque than our competitors making it possible to retrieve any size planer board at any trolling speed.
Attached to the shaft is a heavy duty stainless steel collar which is built for precision adjustments of the clutch (other manufacturers use a thin snap ring which when too much pressure is applied breaks the ring causing the clutch components to rub against the motor housing, thus destroying the unit).
Additionally, we seal our motors through an extensive weatherproofing process to ensure a long lasting life of the motor.
Specs for Reel and Clutch Components: The 6” reel comes with a stainless steel bore to fit the driveshaft. Attached to the shaft is a heavy duty stainless steel collar which is built for precision adjustments of the clutch (other manufacturers use a thin snap ring which when too much pressure is applied breaks the ring causing the clutch components to rub against the motor housing, thus destroying the unit). Our clutch components use a hard anodize pressure plate and 660 bronze machined clutch pads for virtually no wear on the unit even after years of constant use. The clutch knob is also solid aluminum and unlike plastic knobs, will neither break nor need replaced each season.
Aluminum Cased Pulley Specs:
Cisco pulley’s are constructed with solid aluminum side plates, hard anodized aluminum sheave, stainless steel ball bearings, and are bolted together with stainless steel hardware. We manufacture quality products built for a lifetime of use! The sheave is recessed to prevent the line from being captured between the side plate and sheave. The 12/0 swivel is rated by the manufacturer at 1500 lbs (this swivel is constructed in the USA).
Unlike our competitors you will not find a single piece of plastic on our pulleys. This is why our pulleys do not make any squealing sounds when in use. The stainless steel bearings provide a smooth and silent operation like no other pulley available!
Click on images to enlarge
|
Click for larger image
|
|
Cisco - Downrigger w/Solid Boom 1/24
Cisco
Cisco Downrigger
Part Number: DRSBM
Every component on our downrigger is precision machined from a solid piece of aluminum and anodized to military specs. This downrigger is equipped with a 3' solid boom and includes the following:
Swivel Base, Electric Motor with Controls, Boom with Tilt-Up Quick Release Lock, Adjustable Clutch, Ball Cradle, and Two Rod Holders on Repositional Mounts.
Motor Specs
The downriggers use a powerful 12 volt motor with a 7/16” stainless steel output shaft which retrieves at 75 ft/min. and weights up to 35lbs. The three mounting lugs are in a 1-7/8” bolt circle and are ¼-28 fine threaded holes. The electric controls come with a 10 amp resettable breaker. It has enough torque to get any job done in any condition!
For added protection, our motors include a weatherproof heat shrunk boot around the exterior of the motor/power leads and are protected with a GE silicone sealant to provide long term sustainability.
For added protection, our motors include a weatherproof heat shrunk boot around the exterior of the motor/power leads and are protected with a GE silicone sealant to provide long term sustainability.
Swivel Base and Ball Cradle
The bolt pattern on the swivel base will fit our downriggers and thumbscrew mounts (also compatible with Big Jon downriggers/thumbscrew mounts). It indexes every 22 ½° (16 positions) and engagement is held by a tapered stainless steel pin into a tapered hole to ensure that there is never any “slop” for the lifetime of this product. For ease of movement stainless ball bearing are installed on the top and bottom of the indexing wheel.
The T-Handle is shown on the rear of the downrigger, but the handle can be rotated to face the left or right side of the downrigger to provide more clearance room if desired. T-Handle assures easy grip when rotating the unit.
The ball cradle is provided and unlike other manufacturers our ball cradle allows you to easily hold more than one weight. The open end cut at the front of the cradle allows you to store a 12 lb. weight securely in the cradle while allowing 8 lb.+ weights to hang through the bottomless base!
Rod Holders
The tube style rod holder is designed to index 360° with 20 interlocking positions by simply lifting and turning our exclusively engineered spring loaded mechanism. When engaged, it is secured by machined teeth around the entire circumference for virtually no wear on the product ensuring long lasting sustainability.
In addition to the radial movement, the tube will adjust to any angle from 0-90° by actuating the padded lever. The lever can be rotated in any direction to meet the needs of each user. In the bottom of each tube is a machined extension mates with the cross cut in the rod handle butt to keep the rod from swaying.
The rod holders are on a base which can be installed in the reverse direction so they sit behind the reels.
Pulleys and Clutch Knob
Our pulley’s are constructed with solid aluminum side plates, hard anodized aluminum sheave, stainless steel ball bearings, and bolted together with stainless steel hardware. The sheave is recessed to prevent the line from being captured between the side plate and sheave. The 12/0 swivel is rated by the manufacturer at 1500 lbs (this swivel is constructed in the USA). Unlike our competitors you will not find a single piece of plastic on our pulleys.
This solid aluminum clutch knob is 2 ½” in diameter with a 7/16-14 thread tapped thru hole. This knob can directly replace plastic knobs found on Big Jon electric drives.
7” Aluminum Reel
The entire reel is machined from a solid round of aluminum and has a 7/16” bore. Four clutch pads, machined from a solid bar of 660 bronze are provided, which are capable of handling extreme amounts of pressure and heat. A depth counter is installed to monitor how many revolutions the reel has made.
Downrigger Electric Controls
The electric control box is constructed of polycarbonate material and has a waterproof enclosure with stainless steel screws. The wire fittings have rubber inserts to grip and seal the wire as it enters the control box to ensure a watertight seal.
Included in the control is a resettable push button 8 amp breaker with a waterproof boot. There is a 3-way switch (on-off-on) which controls the spooling rotation of the reel and also includes a switch guard and a waterproof boot. The wire is 14 gauge fine stranded low voltage copper wire. The jacket of the wire is UV/water/oil resistant. We provide 6 feet of wire from the boat power supply to the downrigger.
|
Click for larger image
|
|
Downrigger with Telescopic Boom Cisco 1/24
Cisco
Downrigger with Telescopic Boom Cisco
Every component on our downrigger is precision machined from a solid piece of aluminum and anodized to military specs. This downrigger is equipped with a 3'-6' telescopic boom and includes the following:
Swivel Base, Electric Motor with Controls, Boom with Tilt-Up Quick Release Lock, Adjustable Clutch, Ball Cradle, idler and end pulley, and Two Rod Holders on Repositional Mounts.
Motor Specs
The downriggers use a powerful 12 volt motor with a 7/16” stainless steel output shaft which retrieves at 75 ft/min. and weights up to 35lbs. The three mounting lugs are in a 1-7/8” bolt circle and are ¼-28 fine threaded holes. The electric controls come with a 10 amp resettable breaker. It has enough torque to get any job done in any condition!
For added protection, our motors include a weatherproof heat shrunk boot around the exterior of the motor/power leads and are protected with a GE silicone sealant to provide long term sustainability.
For added protection, our motors include a weatherproof heat shrunk boot around the exterior of the motor/power leads and are protected with a GE silicone sealant to provide long term sustainability.
Swivel Base and Ball Cradle
The bolt pattern on the swivel base will fit our downriggers and thumbscrew mounts (also compatible with Big Jon downriggers/thumbscrew mounts). It indexes every 22 ½° (16 positions) and engagement is held by a tapered stainless steel pin into a tapered hole to ensure that there is never any “slop” for the lifetime of this product. For ease of movement stainless ball bearing are installed on the top and bottom of the indexing wheel.
The T-Handle is shown on the rear of the downrigger, but the handle can be rotated to face the left or right side of the downrigger to provide more clearance room if desired. T-Handle assures easy grip when rotating the unit.
The ball cradle is provided and unlike other manufacturers our ball cradle allows you to easily hold more than one weight. The open end cut at the front of the cradle allows you to store a 12 lb. weight securely in the cradle while allowing 8 lb.+ weights to hang through the bottomless base!
Rod Holders
The tube style rod holder is designed to index 360° with 20 interlocking positions by simply lifting and turning our exclusively engineered spring loaded mechanism. When engaged, it is secured by machined teeth around the entire circumference for virtually no wear on the product ensuring long lasting sustainability.
In addition to the radial movement, the tube will adjust to any angle from 0-90° by actuating the padded lever. The lever can be rotated in any direction to meet the needs of each user. In the bottom of each tube is a machined extension mates with the cross cut in the rod handle butt to keep the rod from swaying.
The rod holders are on a base which can be installed in the reverse direction so they sit behind the reels.
Pulleys and Clutch Knob
Our pulley’s are constructed with solid aluminum side plates, hard anodized aluminum sheave, stainless steel ball bearings, and bolted together with stainless steel hardware. The sheave is recessed to prevent the line from being captured between the side plate and sheave. The 12/0 swivel is rated by the manufacturer at 1500 lbs (this swivel is constructed in the USA). Unlike our competitors you will not find a single piece of plastic on our pulleys.
This solid aluminum clutch knob is 2 ½” in diameter with a 7/16-14 thread tapped thru hole. This knob can directly replace plastic knobs found on Big Jon electric drives.
7” Aluminum Reel
The entire reel is machined from a solid round of aluminum and has a 7/16” bore. Four clutch pads, machined from a solid bar of 660 bronze are provided, which are capable of handling extreme amounts of pressure and heat. A depth counter is installed to monitor how many revolutions the reel has made.
Downrigger Electric Controls
The electric control box is constructed of polycarbonate material and has a waterproof enclosure with stainless steel screws. The wire fittings have rubber inserts to grip and seal the wire as it enters the control box to ensure a watertight seal.
Included in the control is a resettable push button 8 amp breaker with a waterproof boot. There is a 3-way switch (on-off-on) which controls the spooling rotation of the reel and also includes a switch guard and a waterproof boot. The wire is 14 gauge fine stranded low voltage copper wire. The jacket of the wire is UV/water/oil resistant. We provide 6 feet of wire from the boat power supply to the downrigger.
|
Click for larger image
|
|
Cisco Complete Rail Mounted Planer System
Cisco
Cisco complete planer system rail pulley mount.
(SHIPS FREE IN LOWER 48 STATES)
Includes:
2 each PMELR Cisco - Planer Board Electric Drive Reel for Custom Applications
SPECIFY O.S. DIAMETER RAIL SIZE IN NOTES
AT CHECKOUT WHEN ORDERING, clamps fit from 7/8" to 1 1/2" larger sizes also available email us to make sure the size is available
Planer Board Electric Drive Reel for Custom Applications Includes: 6" solid aluminum reel, line guide, variable clutch, aluminum clutch knob, high torque electric motor with modified output shaft, universal mounting bracket, vee clamp (capable of clamping 7/8 in. thru 1-1/2 in. diameter); larger vee clamps and selective radius clamps are also available at an additional cost. Control sold separately.
FEATURES: electric drive motor, line guide and vee clamp may be rotated to other positions to accommodate your mounting requirements. The vee clamp can be located on the same side which the motor is mounted as long as the motor is rotated for their clearance.
2 each PMSCP Cisco - Single Planer Pulley with Clamp
If you are looking to set up your boat in a way slightly different than traditional rigging than this unit may be exactly what you have been seeking!
Our rail clamps can fit any rail from 7/8” to 1½” in diameter (larger clamps are also available upon request) and the entire mounting system is machined from solid aluminum. If rails are over 1 1/3" in diameter a $18 up charge may apply.
Our pulley’s are constructed with solid aluminum side plates, hard anodized aluminum sheave, stainless steel ball bearings, and bolted together with stainless steel hardware. The sheave is recessed to prevent the line from being captured between the side plate and sheave. The 12/0 swivel is rated by the manufacturer at 1500 lbs (this swivel is constructed in the USA).
2 each PMECT Cisco - Electric Control for Planer Board Applications
The electric control box is constructed of polycarbonate material and has a waterproof enclosure with stainless steel screws. The wire fittings have rubber inserts to grip and seal the wire as it enters the control box to ensure a watertight seal. Dimensions are approximately 3” x 3” x 2”.
Included in the control is a resettable push button 8 amp breaker with a waterproof boot. There is a 3-way switch (on-off-on) which controls the spooling rotation of the reel and also includes a switch guard and a waterproof boot.
The wire is 14 Gauge Fine Stranded low voltage copper wire. The jacket of the wire is UV/water/oil resistant. We provide 11 feet of wire from the boat power supply to the control box and 22 feet of wire from the control box to the electric drive reel. Extra lengths are available at customer request (additional charges may apply).
Does not include wire/line
Price: $1,299.95 - $1,335.95
|
Click for larger image
|
|
|
|
|
